P300

Compact sized powered pallet trucks

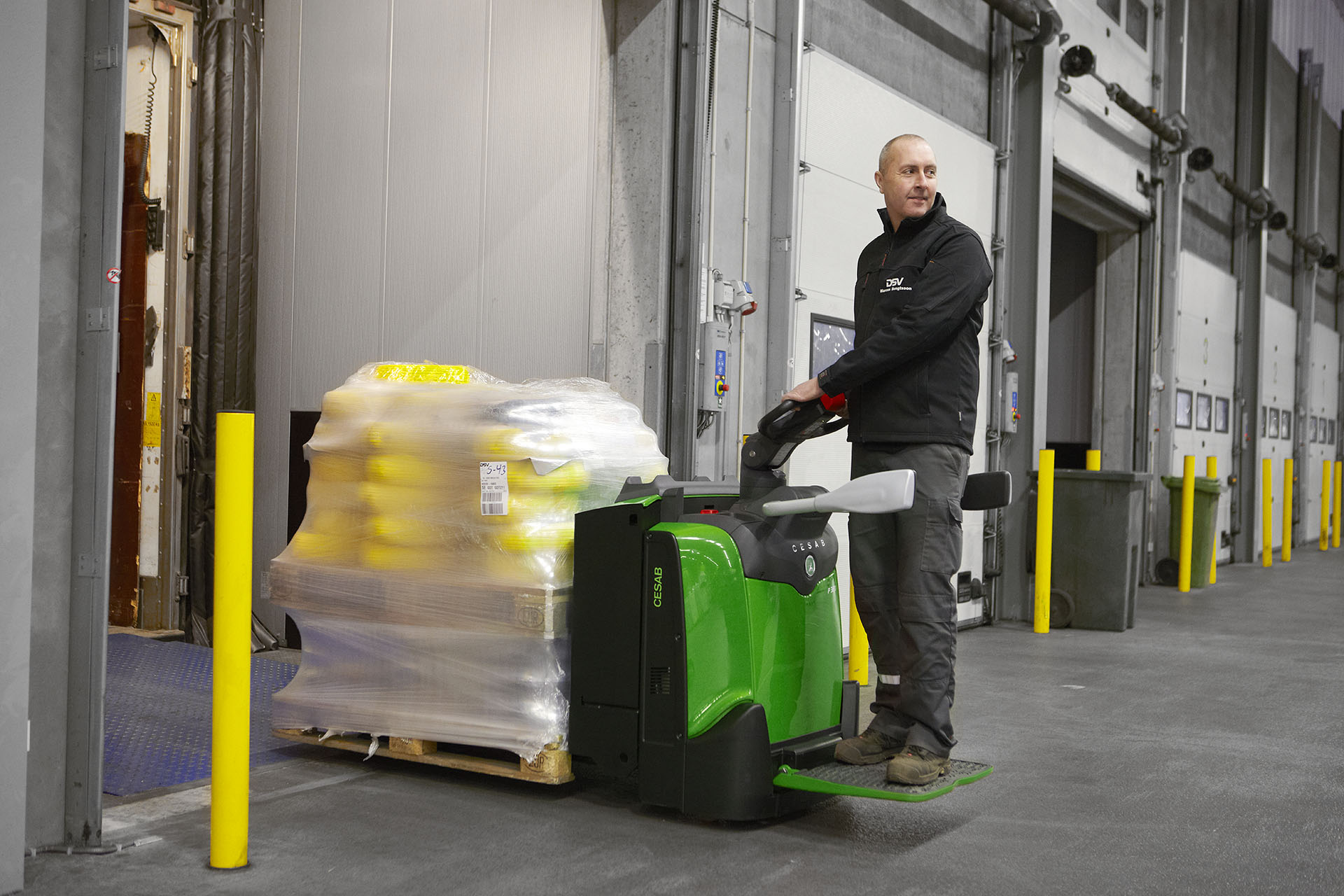

The CESAB P300 is perfect for longer distances and more demanding material handling applications. The trucks combines high load capacities with class-leading compactness, optimum stability and increased safety for driver and load. Thanks to their small turning radius for increased manoeuvrability and high speed, these trucks are extremely productive. The folding platform, one-touch foldable gates and adjustable steering arm make this truck easy to drive, while the Optimised Truck Performance feature and CESAB Powerdrive offer safety and stability.

The ergonomic tiller arm head combines all functions for drive, lifting and lowering while the low body design allows a good and save view on the forks.

The unique CESAB Powerdrive combines contactless controls and CAN-communication to ensure excellent driving characteristics and reduced downtime. This feature also provides quick, reliable communication and enables programmability. The truck can be adapted to the abilities of the user or the restrictions in certain working areas.

CESAB P300 powered pallet trucks deliver an uncompromising combination of compact manoeuvrability and high performance.

With capacities of 2000 kg and 2200 kg, and travel speed up to 10 km/h, the CESAB P300 trucks are perfect for operations requiring long travel distances as well as intensive applications such as loading and unloading vehicles.

Receive my quotation

Contact us

Specifications

Model Code P320
Rated Capacity 2000 kg
Operator Type Operator Platform
Speed with/without load 6-9/6-10 km/h
Truck Length (L2)* excl. forks & platform up 666 - 871 mm
Chassis Width (b1) 730 mm
Battery Voltage/Nominal Capacity K5 24V / 225 - 400 Ah
Fork Length 1000 - 2350 mm

* Depending on battery compartment

Model Code P322
Rated Capacity 2200 kg
Operator Type Operator Platform
Speed with/without load 7.5-9/8-10 km/h
Truck Length (L2)* excl. forks & platform up 714 - 871 mm
Chassis Width (b1) 730 mm
Battery Voltage/Nominal Capacity K5 24V / 400 - 600 Ah
Fork Length 1000 - 2350 mm

* Depending on battery compartment
